EasyDCIM Colocation For HostBill

EasyDCIM Colocation For HostBill is a module that will allow you to provide and manage your EasyDCIM colocation services from the HostBill panel. You will be enabled to, among others, determine the status of each colocation, and your clients - to turn off and on their power outlets remotely.

  • Admin Panel Features:
    • Create/Terminate/Suspend/Unsuspend Colocation
    • Update Order Information
    • One Click Login To User Control Panel
    • View Colocation Resource Usage:
    • Bandwidth Statistics
    • Traffic Statistics Graph
    • Power Usage Graph
    • Generate Default Configurable Options
    • Configure Colocation:
    • Model
    • Location
    • Toggle Automatic Order Acceptance And Colocation Matching
    • Control Service Access Level
    • Control Service Actions And Email Notifications
    • Define Client Area Features:
    • Display Base Features:
      • Label
      • Model
      • Location
      • IP Address
    • Allow Colocation Actions:
      • Auto Login Link
      • Traffic Statistics
    • Display Other Features:
      • Traffic Statistics
      • Power Usage Statistics
      • Power Outlets
  • Client Panel Features:
    • View Colocation Model/Location/Label
    • One Click Login To User Control Panel
    • View Traffic Statistics Graph
    • View Power Usage Graphs
    • Enable/Disable/Restart Power Outlets
  • Configurable Options:
    • Colocation Model
    • Colocation Location
  • Supported PDU Manufacturers:
    • APC
    • CyberPower
    • Enlogic
    • Raritan
  • General Info:
    • Multi-Language Support
    • Supports EasyDCIM v1.4.3 and Later
    • Supports PHP 7.4 Up To PHP 8.1
    • Supports HostBill Themes “Nextgen Clean” And “2019”

Installation and configuration

This tutorial will show you how to successfully install and configure EasyDCIM Colocation For HostBill. We will guide you step by step through the whole installation and configuration process.


  1. Once you get your module package “EasyDCIM Colocation For HostBill 1.0.0.zip”, extract the files.
  2. Copy folder “easydcimcolocation” to /includes/modules/Hosting directory.
  3. Log into the HostBill admin panel.
  4. Move to Settings → Modules → Hosting Modules, find the EasyDCIM Colocation module and activate it.

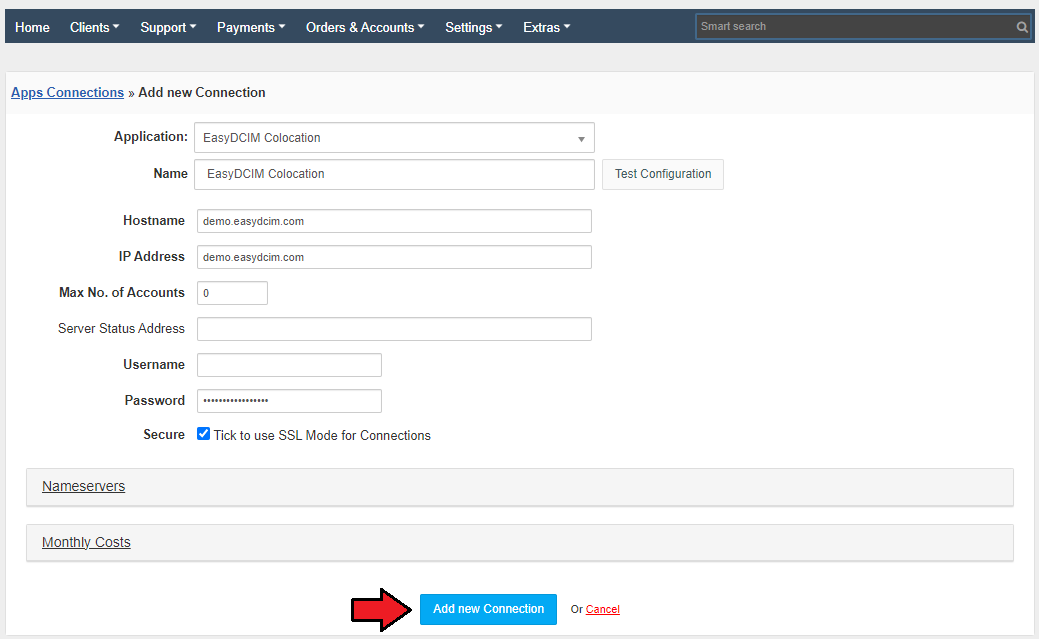

  5. Next, navigate to Settings → Apps Connections and add a new connection for “EasyDCIM Colocation” application. Fill out the connection details and press the “Add new Connection” button to confirm.

Adding New Connection: HostBill Colocation Module - EasyDCIM Documentation


Proceed to Settings → Products & Services → Order Pages. There find “Shared hosting” group of products, open it and add a new product within that group. Fill out the required fields to successfully create a new product.


  • Product Name - name your newly created product. (Note that the remaining fields in this section are not required at this step to continue.)

Connect with App:

  • App - choose the “EasyDCIM Colocation” application from the dropdown menu.
  • App Connection - choose the created in step 5th connection.

New Product Configuration: HostBill Colocation Module - EasyDCIM Documentation
Connecting with Application: HostBill Colocation Module - EasyDCIM Documentation

Now, you can save the changes. At this point you are able to configure the module, just proceed again to the created product’s details → “Connect with App” tab. See the screens below to check an exemplary configuration of the product.

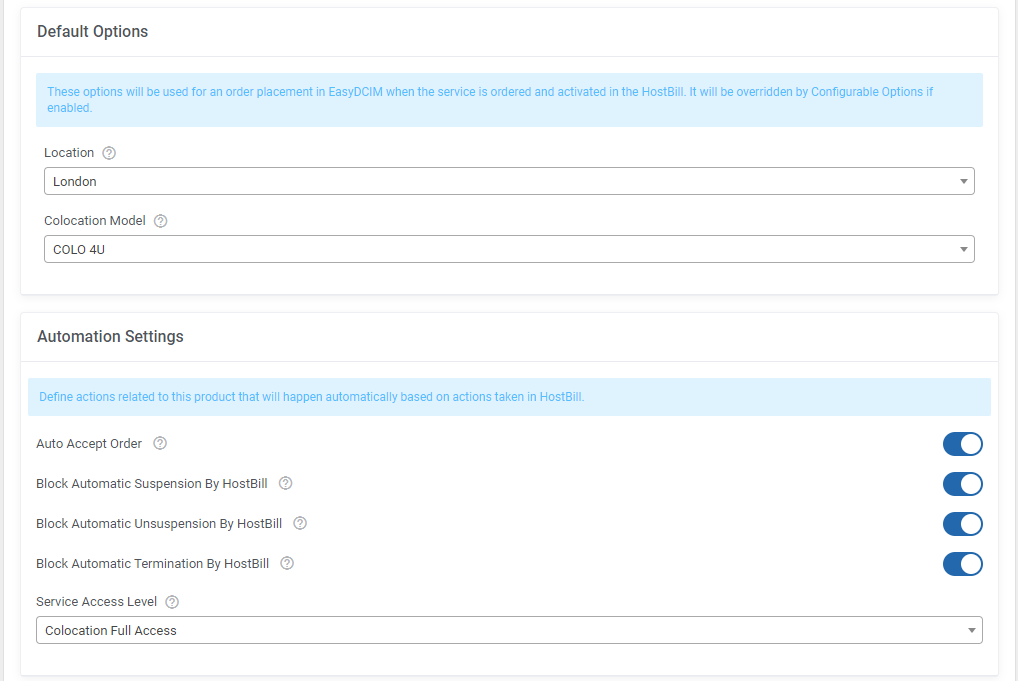

Default Options:

  • Location (required) - the desired server location
  • Model (required) - the EasyDCIM server model

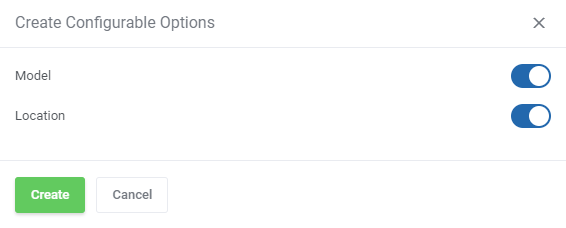

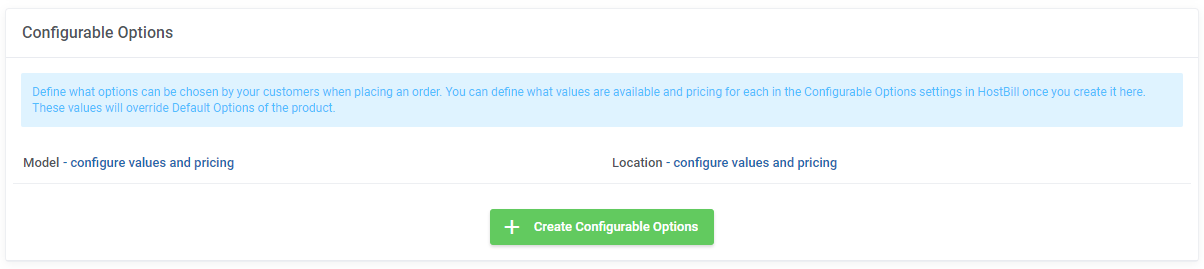

    You may generate the configurable options if you want to use them instead of the ‘Location’ and ‘Model’ features.

Automation Settings

  • Auto Accept - automatically run the server matching process after order placement. Use only if you have configured your EasyDCIM to automatically accept services. If you use cron synchronization, you can leave this option unchecked.
  • Service Access Level - configure the access level to control the features available to your clients. These levels and features are defined in your EasyDCIM at ‘Clients’ → ‘Services’ → ‘Access Level’ tab.

Product Default Options and Automation Settings: HostBill Colocation Module - EasyDCIM Documentation

Email Notifications

Choose service actions to send certain email notifications to selected administrators instead of performing provisioning actions immediately. Leave the fields unchecked to perform the default WHMCS module commands. Choose administrators who will receive the specified service notifications.

Client Area Features

  • Define “Service Information” visibility in the client area:
  • Label
  • Model
  • Location
  • IP Addresses
  • Hide Hosting Information on Service Details Page in Client Area
  • Define “Colocation Actions”:
  • Auto Login Link
  • Aggregate Traffic
  • Power Usage
  • Modules:
  • Device Traffic - display statistics on traffic in the client area.
  • Power Usage Statistics - display statistics on power usage in the client area.
  • Power Outlets - display power outlets in the client area and allow client to manage them.

Client Area Features and Email Notifications: HostBill Colocation Module - EasyDCIM Documentation

Under the “General” tab you may configure Bandwidth and 95th Percentile billing. Define Price as “Metered”, available options will appear. Enable variables visible on the screen below.

Price Configuration: HostBill Colocation Module - EasyDCIM Documentation

Next, navigate to: Order & Accounts → Orders → Create Order. Find the “Add new item” section:

  • “Select a product” - pick “Service”. A new line will appear
  • “Product/Service” - choose your previously created product (step 6).
  • “Domain” - type in the domain

Press Add Product to complete this step. Complete the order.

New Item Details: HostBill Colocation Module - EasyDCIM Documentation

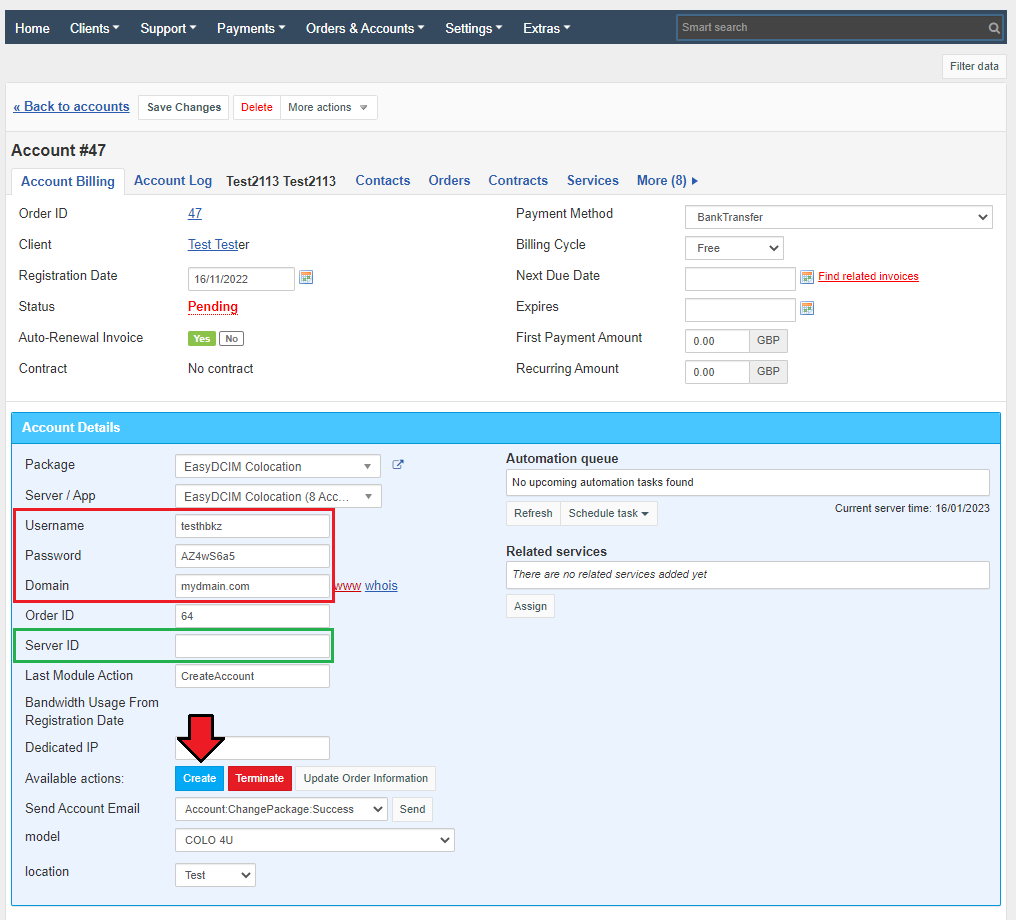

When ready, move to the Order & Accounts → Accounts section and open the account that you have ordered in the previous step.

  • In the “Account Details” enter the Username and the Password
  • Press “Create” to continue
  • Now you will have to wait for the module cron synchronization, the ServerID will be completed automatically and then you will be able manage the service.

Account Details: HostBill Colocation Module - EasyDCIM Documentation

Manual Synchronization

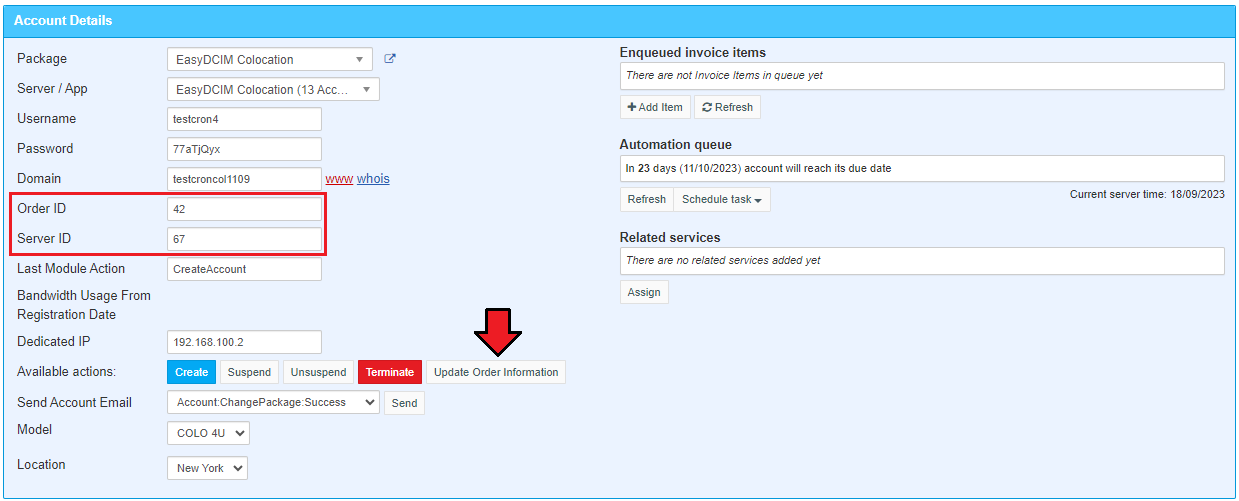

It is possible to perform the synchronization manually, you will not have to wait until the cron is executed. To do that, simply press “Update Order Information” button. That is one of the allowed actions that can be executed on the account, you will find it in the account’s details section → “Available actions”.

Manual Synchronization: HostBill Colocation Module - EasyDCIM Documentation


In this section we will show you all functionalities of EasyDCIM Colocation For HostBill. The module allows you to offer and manage EasyDCIM colocation service right in your HostBill system.

Admin Panel

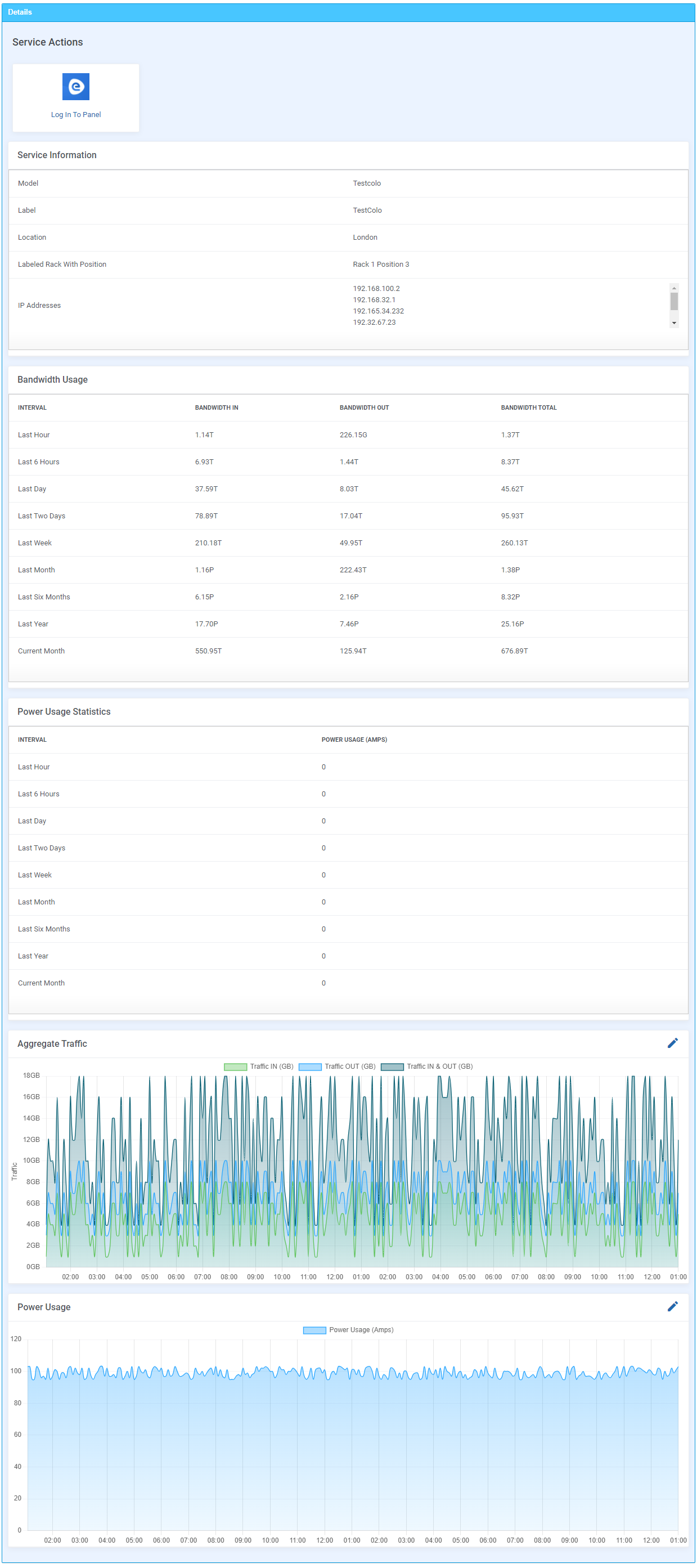

As soon as you set up a server for a client, you can perform various actions and view server details in the HostBill admin panel. After a successful cron synchronization, you will be able to manage and control the service from “Details” section. Take a look at the below screens to see all the available for the admin options.
You can also see the fields with currently assigned “Order ID” and “Server ID” from the EasyDCIM panel.

An empty ‘Server ID’ field means that it has not been automatically assigned by the cron yet (e. g. it may not be activated in the EasyDCIM panel yet). You can also force synchronization by clicking on the “Update Order Information” module command, or enter ID manually and save the settings.

Admin Panel: HostBill Colocation Module - EasyDCIM Documentation

Below these functions you can also view traffic and power usage statistics and even specify the time intervals.

Usage Statistics: HostBill Colocation Module - EasyDCIM Documentation

Client Area

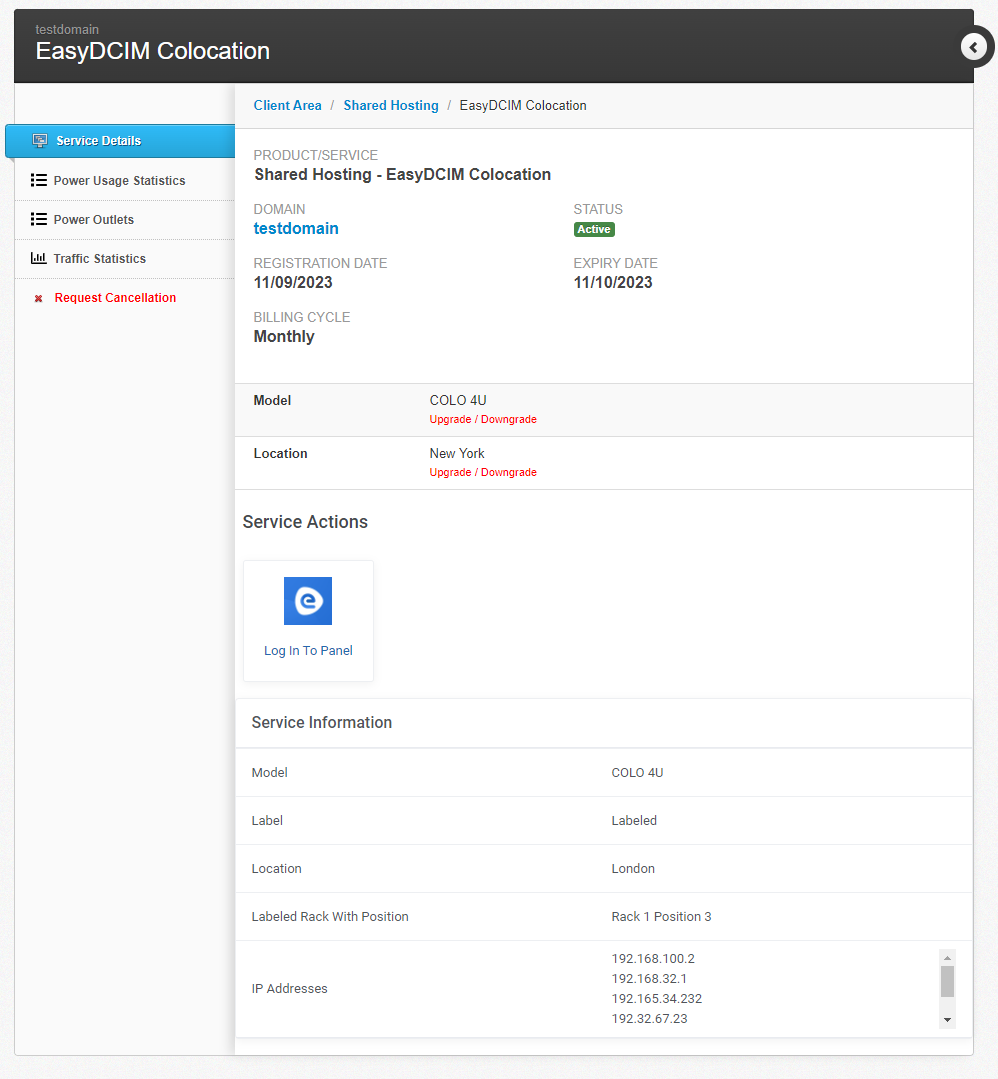

In the main view of the client area your customers can check basic details of a colocation service as well as log in to their EasyDCIM control panel with a single click.

Client Area View: HostBill Colocation Module - EasyDCIM Documentation

View the graphs with traffic statistics. You may also define the time intervals to show needed information.
Note: Available graphs and time intervals depend on the product registration date.

Traffic Statistics in Client Area: HostBill Colocation Module - EasyDCIM Documentation

The same goes for power usage statistics.

Data on Power Usage in Client Area: HostBill Colocation Module - EasyDCIM Documentation

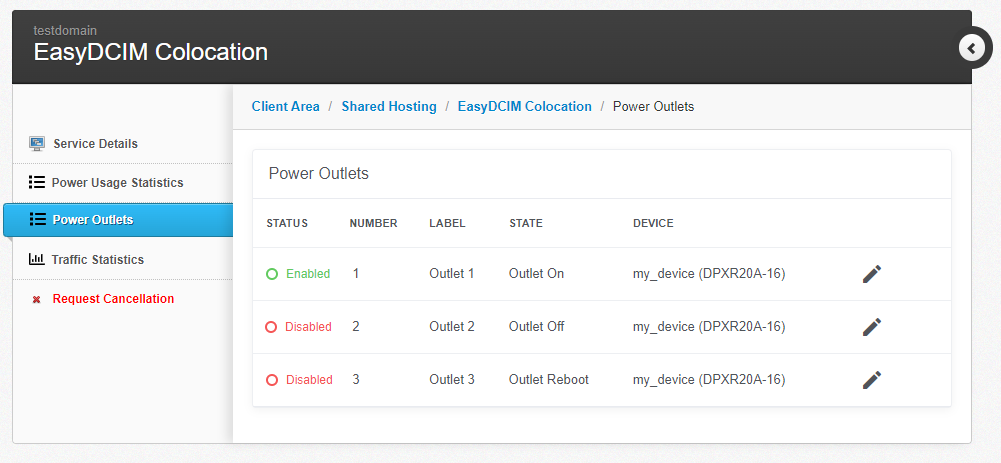

Additionally, your clients can see the current state of all power outlets with the possibility to turn them on, off or restart.

Power Outlets: HostBill Colocation Module - EasyDCIM Documentation
Power Outlet Status: HostBill Colocation Module - EasyDCIM Documentation
